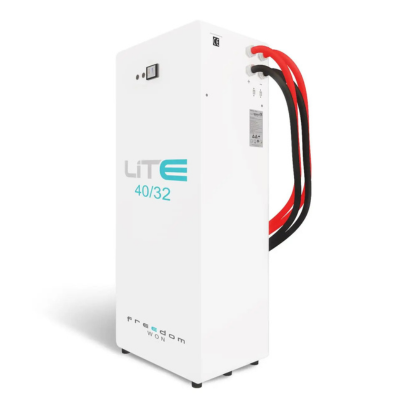

Freedom Won Lite Business 40/32 HV Battery N


Model:  Business 40/32 HV Battery N / Lithium Battery

Operating Voltage: 454/365V

Nominal Voltage: 410V

Max Current Charging: 100Ah

Max Discharging Current:  150/100Ah


This Freedom Won Lite Business HV LiFePO4 battery is the perfect high-quality battery for all your large commercial and industrial solar solutions. The range is from 100KWh to 700KWh batteries.
Product Features:
  • Large Business Storage solution in single deployment
  • 10 year Local manufacturer’s warranty

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

General information:
Battery Type: Lithium Ion
Charge Power: 40Kw
Nominal Voltage: 410V
Depth of discharge: 90.00 %
Discharge Rate: 40000 W
Maximum Discharge Rate: 61000 W
Cycle Life @ 80% DoD and Max 90% DoD: >5500 cycles (Wh)
Dimensions (mm): 1260 x 640 x 290mm (H x W x D)
Weight (kg): 327 kg
Warranty Period: 10 Years
Service Period: 16 Years (5 500 cycles) expected life at 80% DoD, 20 years (7 500 cycles) at 50% DoD.

Additional information


High Voltage


Freedom Won
