Description

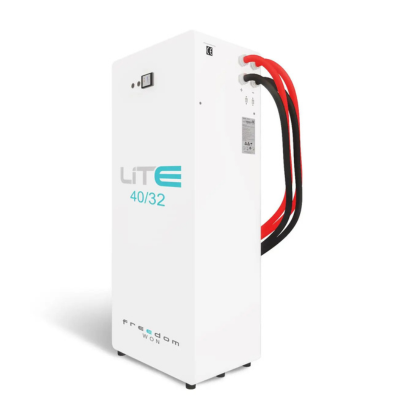

Make: Freedom Won Lite Business 40/32 Battery
Total Energy Capacity [kWh]: 40
Energy, 80% DoD [kWh]: 32
Energy, 90% DoD [kWh]: 36
Current Capacity [Ah]: 800
Max & Cont. Charge Current [A]: 600
Max & Cont. Charge Power [kW]: 30
Max/Cont. Discharge Current [A]: 750/600
Max/Cont. Discharge Power [kW]: 38/30
Nominal Voltage [V]: 52V, to suit 48V Inverters, min 47V, max 56V
Download Data Sheet Freedom Won Lite Business 40/32 Battery
Key features:
- Aluminium enclosure painted white, for use indoors or fully protected under-cover environments, rated to IP20
- USB Serial protocol for troubleshooting & RJ45 for BMS & inverter communication
- State of Charge display (0 to 100%), Error light, Error Reset button, USB plug for programming
- >16 years (>5 500 cycles) expected life at 80% DoD 1, >20 years (>7 500 cycles) at 50% DoD
Superior Warranty:
- 10-year product warranty
