Description

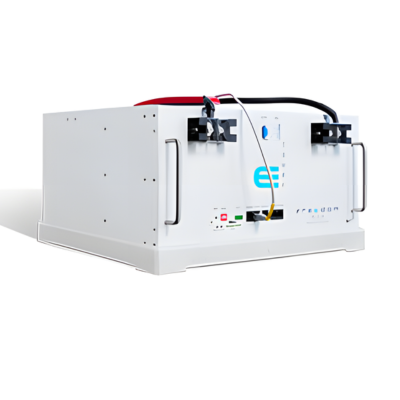

Make: Freedom Won – eTower LiFePO4 Battery 5kW 52V

Total Energy Capacity: [kWh]5
Energy, 80% DoD: [kWh] 4
Energy, 90% DoD: [kWh] 4,5
Current Capacity: [Ah] 100
Max/Cont. Charge Current: [A] 80/70
Max/Cont. Charge Power: [kW] 4,2/3,6
Max/Cont. Discharge Current: [A] 100/90
Max/Cont. Discharge Power: [kW] 5,2/4,7
Max Recommended Inverter Total Rated Power (cont.) [kVA]: 5kVA

Download Spec Sheet: Freedom-Won-Spec-sheet_eTower

Key features:

• State of Charge Display (0 to 100% indicated by six green LED’s)
• Alarm LED (red)
• Run LED (green)
• On LED (green)
• BMS Reset Button
• Main On/Off Switch
• Serial RS232 Plug for Programming via PC (by Freedom Won only)
• Dip Switch block for selecting module addresses.
• Plastic pedestal for tower stacking (cleats for 19” rack not included but available from Freedom Won if required).
• DC cables standard 1,8m long in 35mm2 single core with M6 terminal lugs on one end, red for positive and black for negative.
• Interconnecting tower busbars drilled and cut to length for single tier jumps using tower pedestals, with heat shrink covering, red for positive and black
  for negative.
• Interconnecting RS485 parallel battery communication cables for interconnecting the tower modules’communication RJ45 sockets (standard ethernet cables may also be used).
