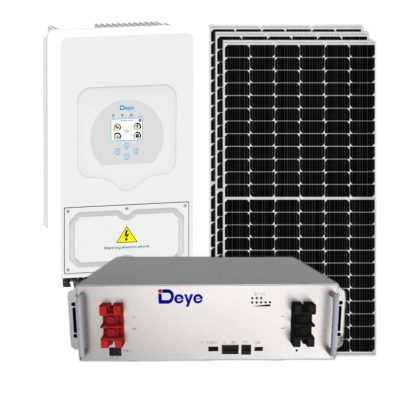

Deye Special Kit Eco III- 5.32 kWh Storage - 5.5kW Inverter -3.3kW Of Pv - Fully Installed

Deye Special Kit Eco III- 5.32 kWh Storage – 5.5kW Inverter -3.3kW Of Pv – Fully Installed

Original price was: R86,990.87.Current price is: R63,198.72.

1 x Deye 5.5kW 48v Hybrid Inverter Charger

1 x  Deye 5.32kw

6 x Canadians 555W

1x Mounts

1 x 50m 6mm Red Pv Cable

1 x 50m 6mm Black Pv Cable

1x 50m 6mm Earth Pv Cable

1 x Keto 125Amp Battery Fuse Breaker set

1 x Battery cable pack

Full Installation

SKU: LSK04-1-2-1-2-1-4 Categories: , Tag:
Deye

Description

Model:  Deye 5kW

Rated Power: 5.5kW

Type: True Hybrid

Input Voltage: 230 VAC

Voltage Range: 220 – 240 V

Frequency: 50/60 Hz

Spec Sheet: 5kW-Deye-Sunsynk-Hybrid-PV-Inverter-Datasheet

Battery Storage

Deye 5.32kWh Lithium-Ion Battery

•Nominal Voltage (V) 51.2

•Operating Voltage(V) 43.2~57.6

•Energy (kWh) 5.32

•Usable Energy (kWh) [1] 4.79

Spec Sheet : Datasheet-A-LV-3U Battery SE-G5.3-V1.7

Solar Input

Panel Type: Canadian Solar 550W Half Cell Mono

Number of Units: 6

Data Sheet: Canadian Solar 555wp – Datasheet CS6W

Balance of System

1 x Keto 125Amp Battery Disconnect Fuse Breaker

1 x 50m x 6mm SGN Solar Cable Red

1 x 50m x 6mm SGN Solar Cable Black

1 x 50m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genuis flashing slate covers not included)

1 x Solar Input Protection Protection Box 2 string in and 2 out

1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors

Full Installation Notes

  • Installation offering for JHB, Port Elizabeth, Alexandria, Cape Town, Pretoria and within 50kms of those main centers.
  • No extreme angle roof types (>30 degrees) and no slate roof types that may require slate kits.
  • Extra will have to be charged if panel lifts are required or ladder rental for very high roofs.
  • Offer assumes that installation point is within 10M from mains db board.
  • Mains DB must have an existing Certificate of Compliance, extra will have to be charged if a COC needs to be done.
  • Offer valid while stocks last.

Brand

Deye
