Description

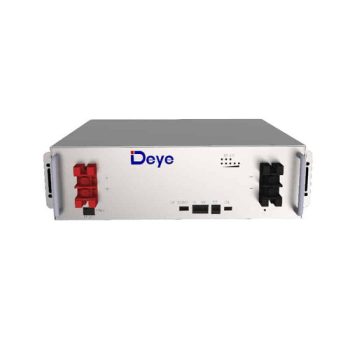

Make: Deye 5.32kWh Lithium-Ion Battery

Battery Chemistry LiFePO4
Capacity (Ah) 104
Scalability Max. 64 pcs pack (340kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V) 51.2
Operating Voltage(V) 43.2~57.6
Energy (kWh) 5.32
Usable Energy (kWh) [1] 4.7
Recommend Depth of Discharge 90%
Dimension (W/H/D, mm) 440*133*560
Weight Approximate(kg) 44
Master LED Indicator 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure IP20
Operating Temperature Charge:0～55℃ (Optional heating) / Discharge:-20℃～55℃
Storage Temperature 0℃～35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life ≥6000(25℃±2℃, 0.3C/0.3C, 90%DOD, 70%EOL)
Installation 19-inch standard rack (depth ≥600mm / with), Floor-Mounted, Wall-Mounted,
Communication Port CAN2.0, RS485

Download Deye 5.32 Data sheet

Key features:

• Safer-Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long lifespan, high efficiency and high power density.Intelligent BMS, providing complete protection.
• Reliable Support high discharge power. IP20, natural cooling, wide
  temperature range: -20℃ to 55℃.
• FlexibleModular design, easy to expand, Max. 64 units in parallel,
  Max. capacity of 340kWh.
• Suited to residential and commercial applications for increasing
  the self-consumption ratio.
• Convenient Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
• Eco-Friendly
  Use environmental protection materials, the whole module
  non-toxic, pollution-free

Superior Warranty:

• 10-year product warranty
