Description

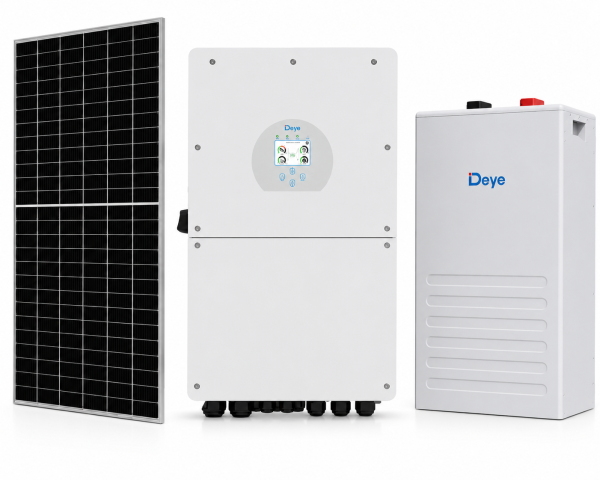

Make: Solar Kit – Deye 16kW + Deye 16kw Battey+ 16x Longi 630W ( Interchangeable with tier one panels)
Inverter
Brand: Deye 16KW Single Phase Max Hybrid Inverter
Battery Input Data
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Yes
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery
Brand: Deye
Battery Chemsitry : LiFePO4
Total Energy :16kWh
Nominal Voltage : 51.2V
Operating Voltage Range :44.8~57.6V
Charging Voltage: 55.2V
Max. Charge/Discharge Current: 230A
Spec Sheet: Deye 16kw battery
Panels – Longi 630W
Rated Power: 630W
Length: 2,382 mm
Width:1,134 mm
Depth: 30 mm
IMP: 14.43A
VMP: 44.36 V
VOC: 53.70 V
Temp. Coefficient (Mpp): -0.35 %
Spec Sheet:
Longi 640W – Hi-MO X10 Explorer LR7-72HVH 630-650M
Balance of System
1 x Keto 315 Amp Battery Disconnect Fuse Breaker
1 x 100m x 6mm SGN Solar Cable Red
1 x 100m x 6mm SGN Solar Cable Black
1 x 50m x 6mm Earth Cable
16 x Clenerack IBR( Rail less mounting solution)
1 x Solar Input Protection Protection Box 2 string in and 2 out
1 x AC Protection Box – Surge Arrestor/2 x 80Amp Breakers/80Amp Changeover
2 x Pairs MC4 connectors
