Description

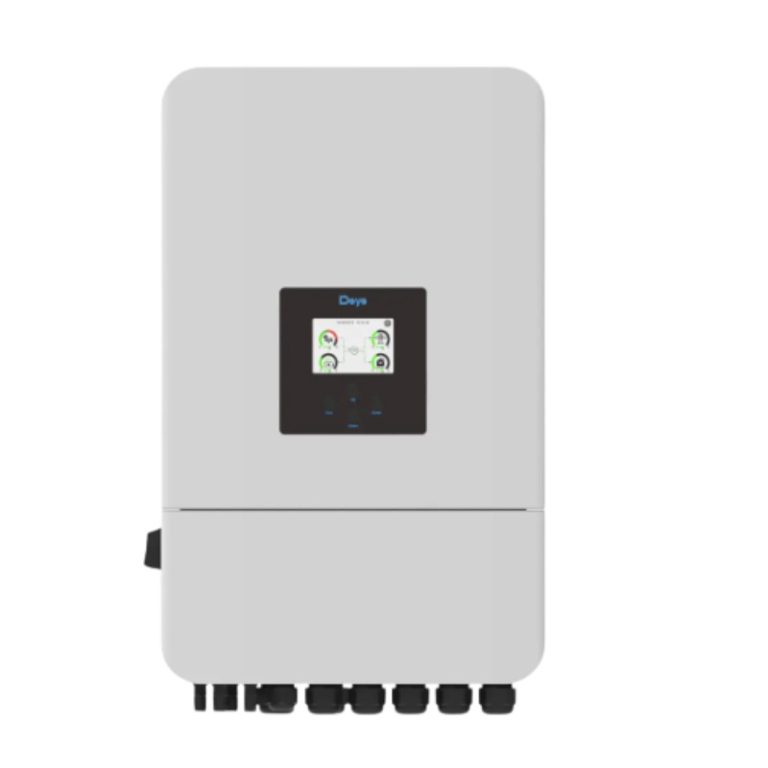

Make: Deye 10kW Hybrid Inverter
Battery Input Data
Battery Type: Lead – Acid or lithium i-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-ion Battery: Self adaption to BMS
Number of Battery Input: 1
Battery Type: Lead – Acid or lithium i-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-ion Battery: Self adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Access Power (W): 20000
Max. PV Input Power (W):1 6000
Max. PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated PV Input Voltage (V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
Ac Input/Output Data
Rated AC Input/Output Active Power (W): 10000
Max. AC Input/Output Apparent Power (VA): 11000
Rated AC Input/Output Current (A); 45.5/43.5
Max. AC Input/Output Current (A); 50/47.9
Rated AC Input/Output Active Power (W): 10000
Max. AC Input/Output Apparent Power (VA): 11000
Rated AC Input/Output Current (A); 45.5/43.5
Max. AC Input/Output Current (A); 50/47.9
Spec Sheet: Deye 10kw Data sheet
Key features:
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel - Max. charging/discharging current of 210A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
