Description

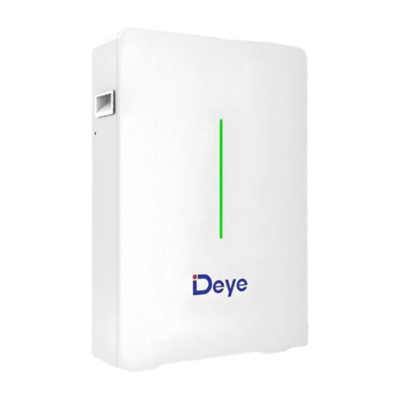

Make: Deye 10.64 kWh 51.2V LiFePO4 Battery
Battery Chemistry: LiFePO4
Capacity: 208 Ah
Nominal Voltage: 51.2 V
Nominal Energy: 10.64 kWh
Usable Energy: 9.58 kWh
Dimensions: 600 x 750 x 200 mm (without hanging board)
Weight: Approximately 99 kg
IP Rating: IP20
Cycle Life: ≥ 6000 (25°C ± 2°C, 0.5C/1C, 90% DOD, 70% EOL)
Download Deye Spec Sheet Deye 10.64kw spec sheet
Key features:
- The RW-F10.6 utilizes LFP chemistry, ensuring a safer battery that is non-toxic and pollution-free.
- With a maximum support of 1C charge and 1.2C discharge, this battery can deliver up to 6000 cycles at 90% DOD.
- The built-in Intelligent BMS provides complete protection, while natural cooling and a wide temperature range (-20°C to 55°C) ensure optimal performance in various conditions.
- The modular design allows for easy expansion, with a maximum of 32 units in parallel, providing up to 340 kWh of capacity.
- The battery modules feature auto-networking (no DIP switch code), easy maintenance, and support for Deye remote monitoring and upgrades.
- Constructed with environmental protection materials, the RW-F10.6 is non-toxic and pollution-free.
- The flat design allows for both wall-mounted (with Wall Bracket) and floor-standing (with removable base) installations, saving valuable space.
