Description

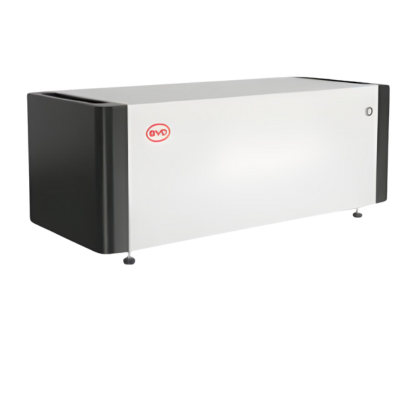

Make: BYD LV5.0 – 5kWh Battery Box
Usable Energy: 5kWh
Max.Charge and Discharge Current: 70A
Peak Charge and Discharge Current: 200A, 10s
Dimensions(H/W/D): 195 x 595x 255 mm
Weight: 42Kg
Nominal Voltage: 51.2 V
Operating Voltage: 40 – 57.6 V
Charge Cut-Off Voltage: 57.6 V
Discharge Cut-Off Voltage: 40V
Scalability: Max. 32 in Parallel (160kWh)
Installation Mode: Floor Stand
Communication: CAN / RS485 / Bluetooth / Wi- Fi
Round-trip Efficiency: 95%
Applications: On Grid / On Grid + Backup / Off Grid
Operating Temperature: Charge 0-50c & Discharge -20-50c
Protection Class: IP20
Storage Humidity: 5%-95%
Altitude: 4000m
Certification: CE / IEC62619 / UN38.3
Download Data Sheet BYD Battery Box Spec Sheet
Key features:
- LFP cells developed in-house Proven in millions of EVs
- LFP expertise since 2002 1M+ systems in 100+ countries
- 100% usable capacity
- Modular design Expandable anytime
- Monitoring and analysis Remote diagnosis and OTA
- One-click auto-configuration of compatible inverters
