Description

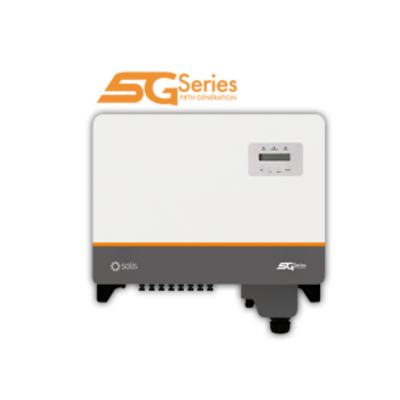

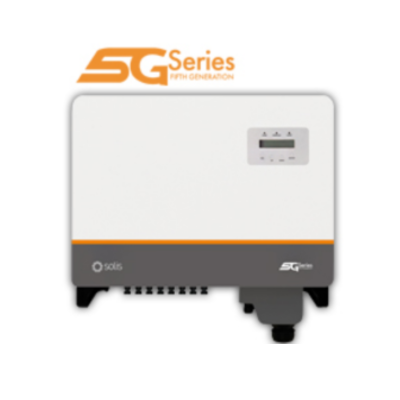

Make: Solis 40kW 5G 3 Phase Quad MPPT – DC
Recommended max. Pv: 60 kW
Max. input voltage: 1100 V
Rated voltage: 600 V
Start-up voltage: 180 V
MPPT voltage range: 200-1000 V
Max. input current: 4*32 A
Max. short circuit current: 4*50 A
MPPT number/Max. input strings number: 4/8
Rated output power: 40 kW
Max. apparent output power: 44 kVA
Max. output power: 44 kW
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 60.8 A / 57.7 A
Max. output current: 66.9 A
Max. efficiency: 98.7%
EU efficiency: 98.3%
Download Data Sheet Solis 40k
Key features:
- Max. efficiency 98.7%
- String current up to 16A
- 3/4 MPPT design, supports multiple orientation
system design - Night time PID recovery function, increases overall
system yield (optional) - Wide voltage range and low startup voltage
- Supports export power control
- Intelligent string monitoring, smart I-V curve scan
- Supports RS485, WiFi, GPRS
- Scan to register on SolisCloud, supports remote
upgrade and control - IP66
- AFCI protection, proactively reduces fire risk
- Globally recognised branded componentry for
longer life - Intelligent redundant fan-cooling
- Supports GPRS/WiFi communication with less
wiring and reduced installation costs - > 150% DC/AC ratio
- Supports high power modules for lower installation costs
Superior Warranty:
- 12-year product warranty
- 25-year linear power output warranty
