Description

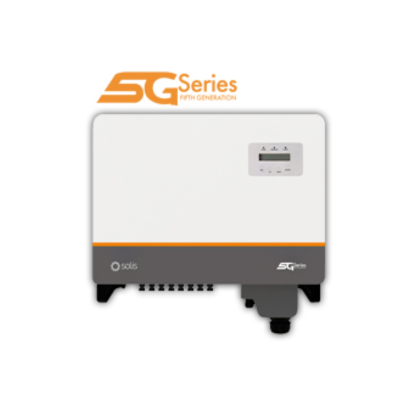

Make: 36kW 5G 3 Phase Quad MPPT – DC
Recommended max. PV power: 54 kW
Max. input voltage: 1100 V
Rated voltage: 600 V
Start-up voltage: 180 V
MPPT voltage range: 200-1000 V
Max. input current: 4*32 A
Max. short circuit current: 4*50 A
MPPT number/Max. input strings number: 4/8
Rated output power: 36 kW
Max. apparent output power: 36.3 kVA
Max. output power: 39.6 kW
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 54.7 A / 52.0 A
Max. output current: 60.2 A
Power Factor >0.99 (0.8 leading – 0.8 lagging)
THDi <3%
Max. efficiency: 98.7%
EU efficiency: 98.3%
Download Data Sheet Solis
Key features:
- Supports export power control
- Intelligent string monitoring, smart I-V curve scan
- Supports RS485, WiFi, GPRS
- Scan to register on SolisCloud, supports remote upgrade and control
- Max. efficiency 98.7%
- String current up to 16A
- 3/4 MPPT design, supports multiple orientation
system design - Night time PID recovery function, increases overall
system yield (optional) - Wide voltage range and low startup voltage
